Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller

Product Categories
Dongguan Youbi Test Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller

  • 1
  • 2

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Brand Name : YOUBI

Model Number : UP-6316

Place of Origin : CHINA

Payment Terms : T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability : 20 Unit/month

Delivery Time : 10-15 work days

Packaging Details : Professional Export Wooden Box Packaging

Product name : Dust and sand proof test chamber

Internal dimensions (mm) : 800*1000*1000

verall dimensions (mm) : 1050*1420*1820

Normal Wire Diameter : 50um

Normal Width of a Gap Between Wires : 75um

The Talcum Powder Amount : 2kg ~ 4kg/M3

Fight Time : 0 ~ 99h59m

Power supply : 380V, 50Hz

Contact Now

UP-6316 Low Noise Lab Sand and Dust Test Chamber IPX56 Protection Test Equipment

Standard: IEC60529

Product Features
  • Test area size: 1000×1000×1000mm (D×W×H)
  • Interior material: SUS304 stainless steel
  • Exterior material: Steel plate with protective coating, blue color

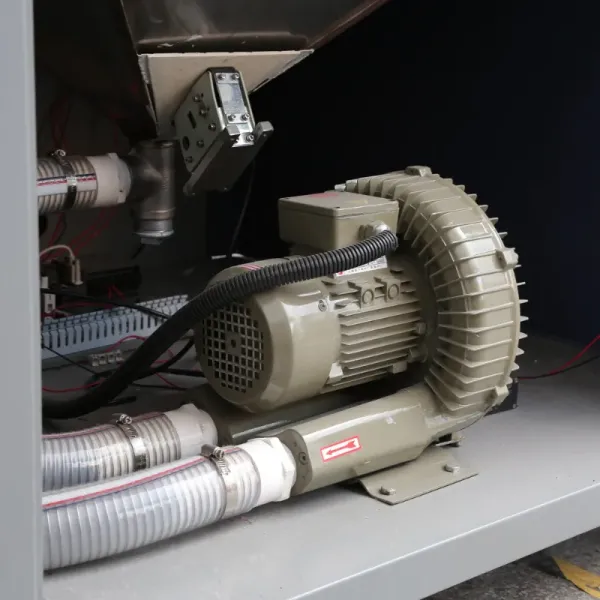

  • Dust blown in test area by air motor
  • Dust re-cycle blowing by circulating pump
  • Heater fixed into test chamber to keep dust dry
  • Wiper fitted to view window (35×45cm)
  • Silicon seal for door
  • Programmable color display touch screen controller located on right side
  • Stainless steel shelf fixed above sieve and funnel
  • Chamber equipped with power interface for test specimen
  • Bottom fitted with circulating pump, vacuum pump, motor
  • Temperature sensor PT-100
  • Comprehensive safety protection systems
  • Long service lifetime guarantee
  • Easy to operate control panel
  • Power: 380V, 50Hz
Technical Parameters

Note: Chamber size can be customized according to customer request. We have experience producing and installing walk-in dust chambers.

Parameter Specification
Internal dimensions (mm) 800×1000×1000
Overall dimensions (mm) 1050×1420×1820
Normal wire diameter 50μm
Normal width of gap between wires 75μm
Talcum powder amount 2kg ~ 4kg/m³
Test time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Control & System Components

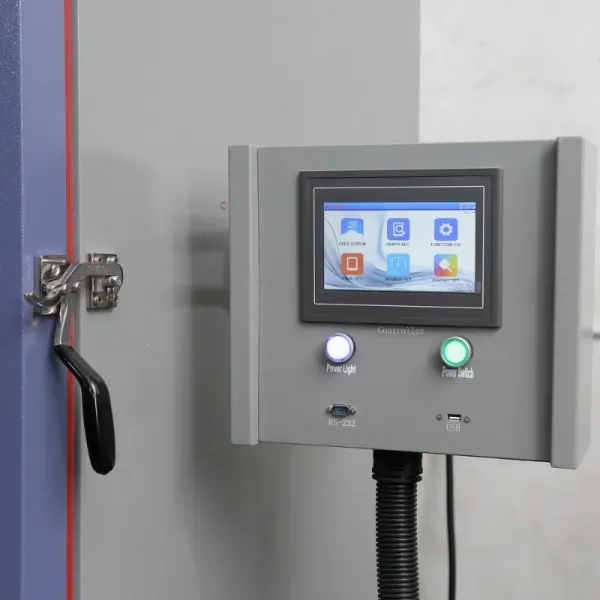

  • Controller: 5.7" programmable color display touch screen controller with PC Link software, RS-232 interface
  • Vacuum system: Equipped with vacuum pump, pressure gauge, air filter, pressure regulating triple, connecting tube
  • Circulating fan: Enclosed alloy low-noise motor, multi-vane centrifugal fan
  • Heating system: Independent Nichrome electronic heating system
  • Power supply: 380V 50Hz
  • Safety devices: Electric leakage, short circuit, over-temperature, motor overheating, over-current protection with power failure memory function
Product Images
Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller Low Noise IPX56 Protection Sand And Dust Test Chamber With Programmable Touch Screen Controller
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Specifications Customization: Create drawings and reference photos for customized requirements, confirm final solution and pricing
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation and After-Sales: On-site installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. Urgent orders receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. On-site installation assistance is available when necessary.
